- Crossover Type-2-way; Maximum Frequency Response-28 kHz; Physical Characteristics-Color-White
- Input Power (Maximum / Nominal): 140W / 50W; Impedance-8 Ohm; Physical Characteristics-Depth-4.3
- Driver Type-Dome; Crossover Frequency-3.50 kHz; Physical Characteristics-Diameter-10.9
- Slim profile design for flush in-celing or wall mounting
- Sealed back cover protects against dust and moisture
- Paintable grill and large mounting clamp
- Polypropylene mica cone woofer for high-performance mid/low sound reproduction
- Grain-finished acoustic baffle with spiral pattern for natural sound dispersion
Product Description
An easy-to-install in-ceiling speaker system that has magnetic grilles and high sound quality designed to meet various custom installation requirements.
From the Manufacturer

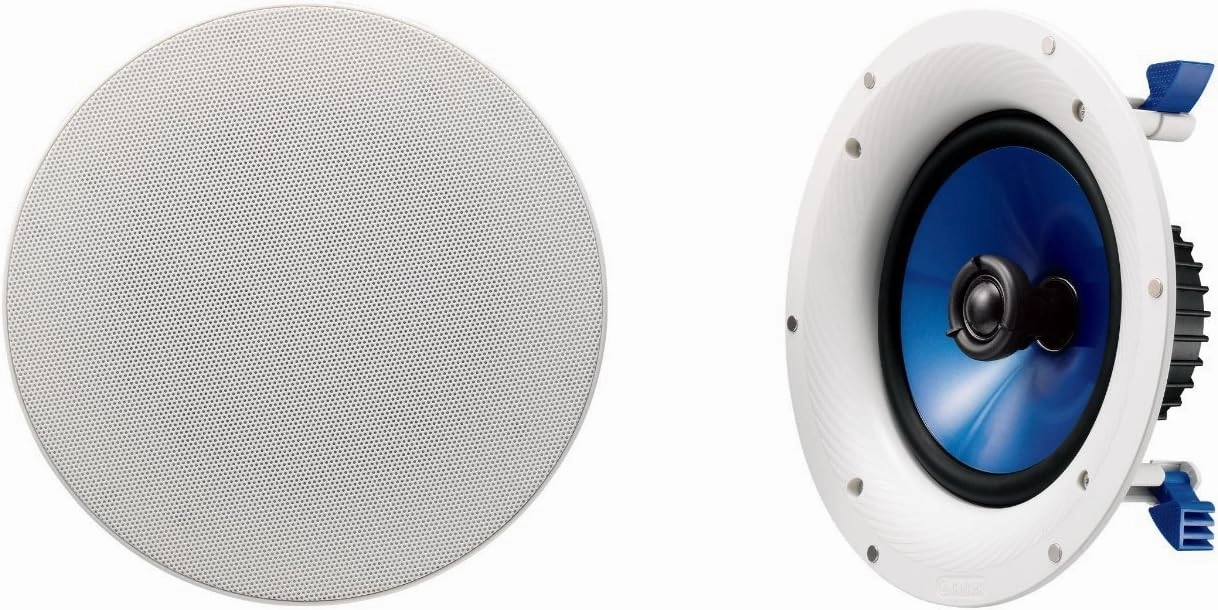

Yamaha NS-IC800 In-Ceiling Speakers: Rich Stereo Sound Anywhere in Your Home
The NS-IC800 8-inch in-ceiling speaker is good for 2-channel sound reproduction or home theater use in a living room, dining room, family room or bedroom. The NS-IC800 uses a blue polypropylene mica cone woofer and fluid-cooled soft- dome swivel tweeter in a coaxial design. The tweeter swivels so it can be aimed for most effective high frequency output. The paintable grille with magnets makes it easy to attach or remove for quick installation. The large mounting clamp with non-slip tread grips ceilings or walls firmly for sure installation.
The Yamaha NS-IC800 blends seamlessly into your decor
High Sound Quality with a Unique Design
Yamaha's policy of always putting sound quality first, combined with decades of experience in producing fine speakers, ensures that the sound of these speakers is superior to that of many other in-ceiling speakers. The NS-IC800 uses a blue PP (polypropylene) mica cone woofer and fluid-cooled soft-dome swivel tweeter in a coaxial design. The tweeter swivels so it can be aimed for most effective high frequency output.
Magnets make it easy to attach or remove the grille
A unique ridge-shape aluminum center cap with a stepped speaker surround eliminates mid-high frequency peaks, so the sound is delivered smoothly and musically.

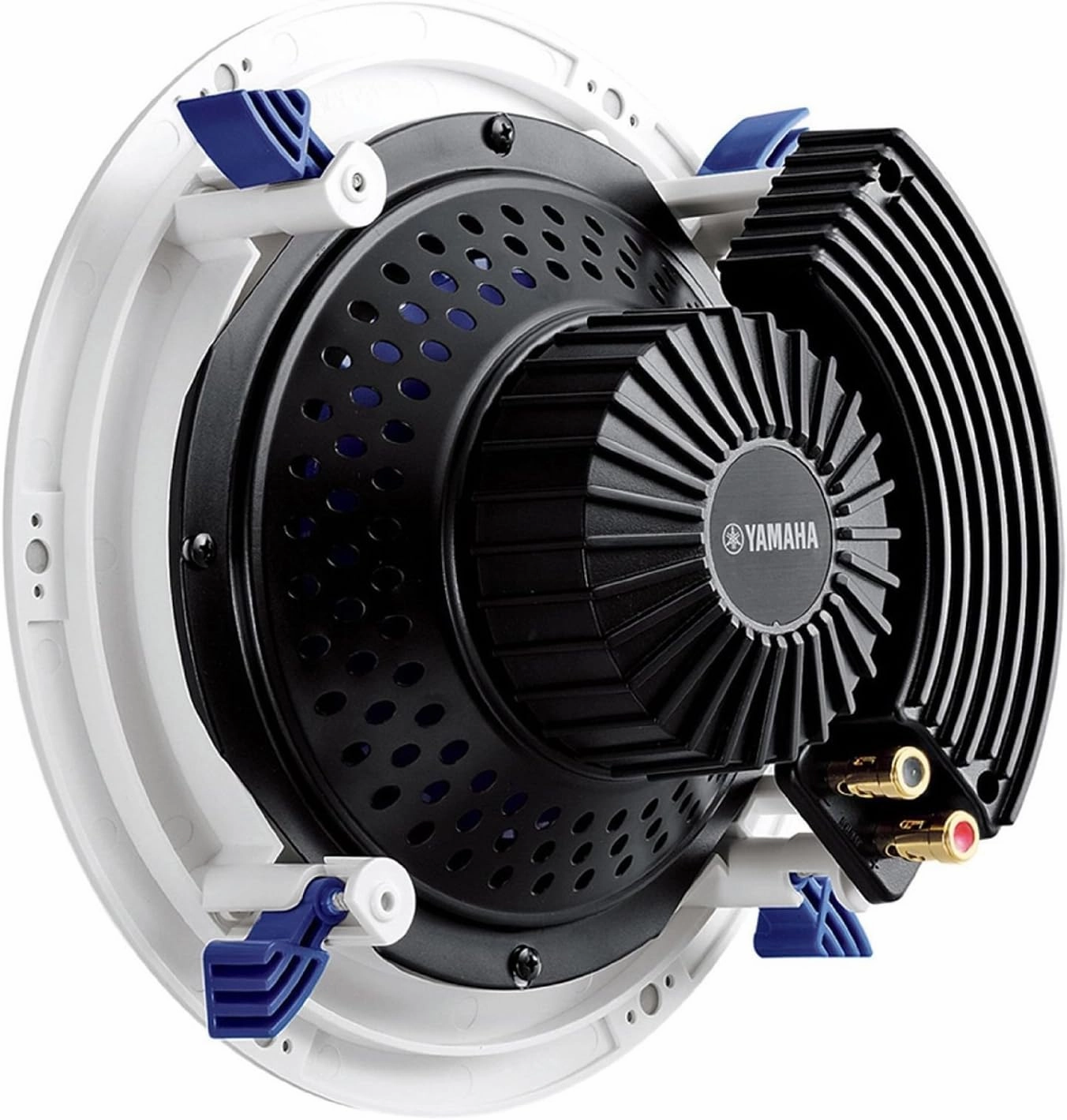

The NS-IC800 8-inch speaker is good for 2-channel sound reproduction or home theater use in a living room, dining room, family room or bedroom. The design of these speakers is very practical. They have a noticeable grain-finished acoustic baffle with a spiral pattern which makes the sound disperse naturally. The slim fringe grille becomes almost invisible after installation, so it won't conflict with your interior decor. A sealed back cover protects both speaker unit and crossover from dust and moisture.
Quick and Easy Installation
The paintable grille with magnets makes it easy to attach or remove for quick installation. The large mounting clamp with non-slip tread grips ceilings or walls firmly for sure installation. No need for expensive professional installation--the NS-IC800 is an easy upgrade to bring better stereo sound into your existing home theater setup.
Technical Specifications
- Speaker Type: 2-way coaxial
- Woofer: 8" polypropylene mica cone
- Tweeter: 1" fluid-cooled soft dome, swivel
- Voice Coil: Single
- Frequency Response: 50 Hz - 28 kHz
- Impedance: 8 ohms
- Sensitivity: 90 dB
- Maximum Input Power: 140 watts
- Network (Crossover Frequency): 12 dB/oct. (3.5 kHz)
- Speaker Terminals: Gold-plated, push type
- Grille: Thin, slim-fringe with magnet catch
- Dimensions: 10-7/8" x 4-1/4" (Diameter x Depth)
- Mounting Depth: 4-1/4"
- Weight: 4.2 lbs
- Package: Pair.
