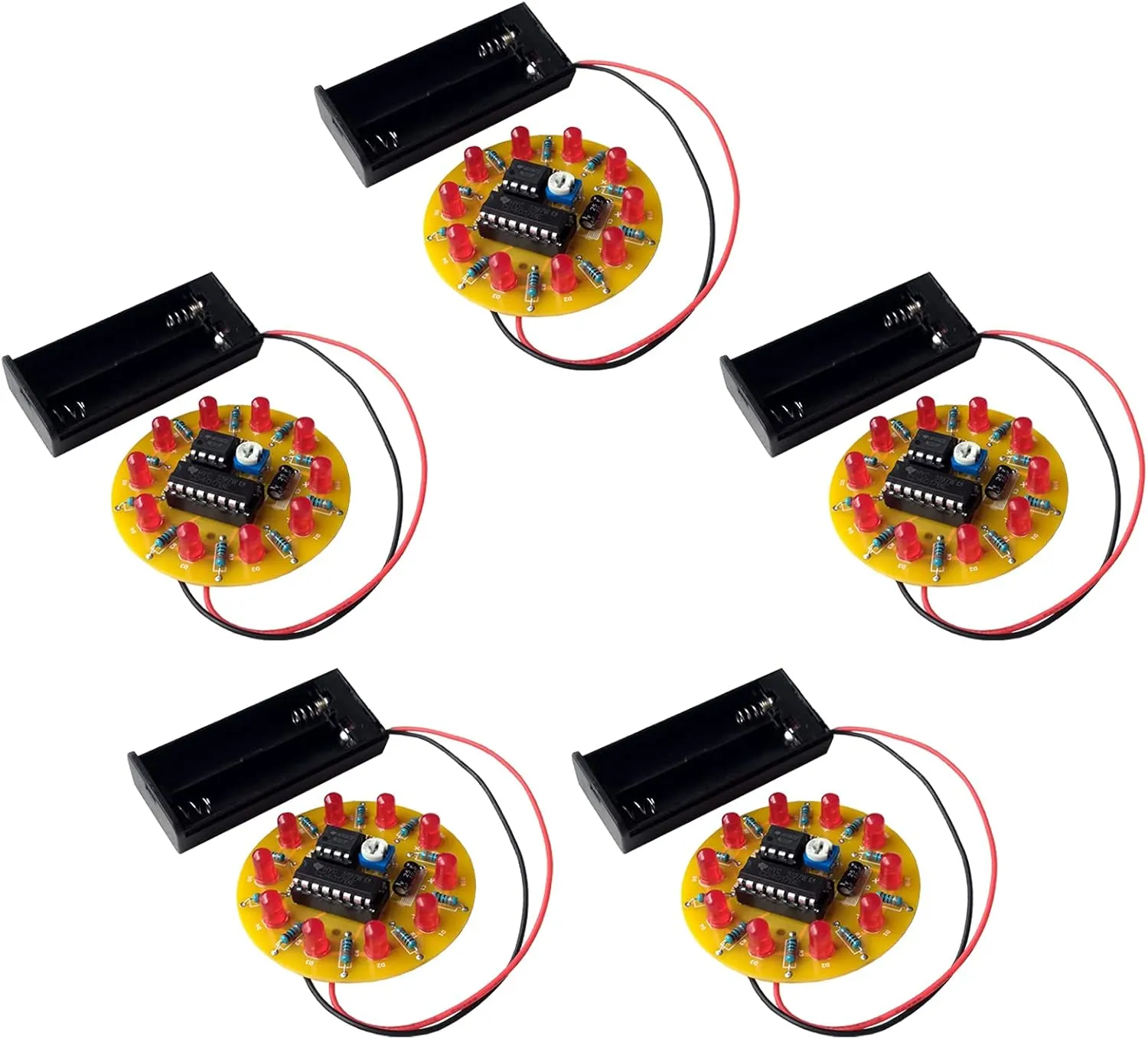

- [Fun And Enjoyable Project] This is a soldering project for diy electronics kit. It included 10 LED lights, when you finish soldering and power on, the LED will light up one by one, looks like a Spinning LED Wheel, the speed can be adjusted by an adjustable resistor.
- [It Requires Users To Solder] Users need to solder the components themselves, so users are required to have a simple electronic technology foundation and soldering ability. We provide paper welding instructions.
- [Used For] It is suitable for diy soldering project, electronic enthusiasts, hands-on soldering learning, electronic classrooms, electronic competition projects, creative lighting, and of course it is also a meaningful gift.
- [Product Size] The size of the PCB is 2.16 inch, it is powered by 2 pieces AAA battery (Package Not Included)
- [Professional Services] iCubeSmart have various electronic DIY kit products. If you receive the product and do not know how to make it, or the component is broken during production or if you need help to modify the animation, you can leave us a message. We offer life-long technical support services for our DIY products. If you need other products, please search for the brand name: icubesmart.
Package = 5 Sets
One Set Contains The Following Accessories:
1. AAA Battery box with switch x1
2. 330 Resistor x12
3. PCB(2.16 inch) x1
4. 5mm RED LED x12 (As a matter of fact, only 10 LEDs will be used, but to prevent damage to LED during manufacture, LED is provided for stand-by)
5. CD4017 Chip holder x1
6. CD4017 Chip x1
7. NE555 Chip holder x1
8. NE555 Chip x1
9. 10uF Capacitance x1
10. 10K Resistor x1
11. 10K Adjustable Resistance x1
12. Paper welding instructions x1
Hardware Features:
Microcontroller-chip: NE555 CD4017
Finished product size: 2.16*0.43inch
Upon receipt of the goods, you only need to weld the components based on the paper welding instructions, then put in 2 pieces AAA battery and power on, the LED will light up one by one, the speed can be adjusted by an adjustable resistor.
