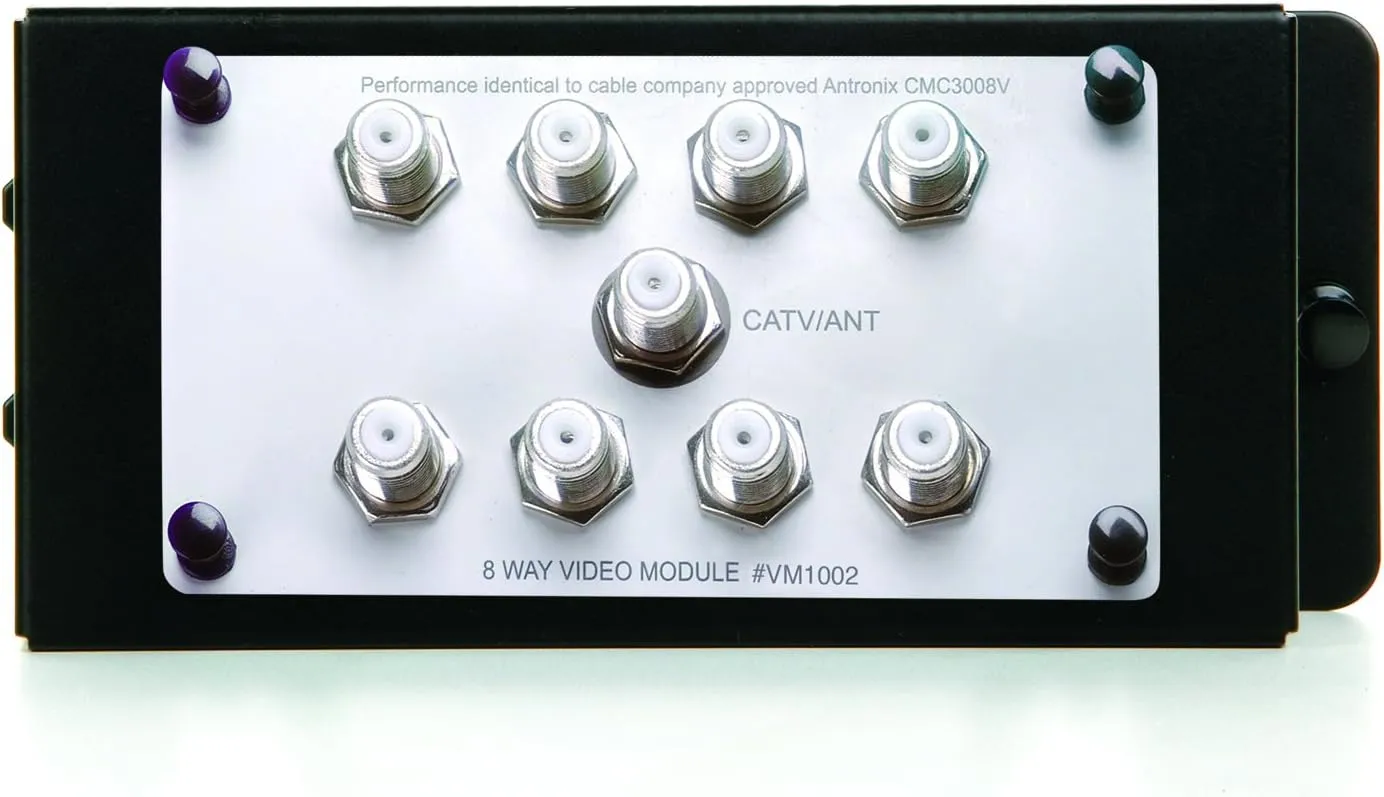

- ENHANCED VIDEO SPLITTER: It is ideal for use with digital cable TV or antenna and the brackets are included.
- SPLITS VIDEO SIGNAL: The enhanced video splitter handles up to 8 outputs and 1 inputs. And the Bandwidth is 1 GHz. High-Performance Splitter Designed for Digital Cable, On Demand, Pay-Per-View and High-Speed Cable Internet.
- F TYPE CONNECTORS: It uses Standard F type connectors and DC is passing between all ports
- CONVENIENT AND FAST ORDERING: The new and improved bay style brackets save space and simplify wire management. And by including the bracket with the module, ordering is fast and convenient with out-of-the-box simplicity.
Product Description
It’s time to take television to a whole new level. The new premium video splitters from On-Q/Legrand let you experience crystal-clear picture quality on TVs in the home. Whether it is HDTV, Digital Cable or Interactive TV, On-Q video products connect you to strong, consistent signals and the clearest and sharpest pictures. These high-performance splitters are designed for digital cable, On Demand, Pay-per-View and high-speed cable Internet.
General info
Color: Silver
Finish: Powder Coat
Footprint: Single Bay
Connection Type: F Connector
Type: Passive Splitter
Input Plug Type: F Connector
Surge Protected: Yes
Assembly/installation information
Mounting Hardware Included: Yes
Listing agencies/third party certifications
UN SPSC: 32101529
Construction information
Installation Location: Enclosure
Dimensions
Depth (Metric): 4.7 cm
Depth (US): 1.85"
Length (Metric): 16.3 cm
Length (US): 6.42"
Width (Metric): 9.1 cm
Width (US): 3.6 in
Technical information
Bracket Required: 101370-01 included
Connection Method: F
Frequency: 5-2150 MHz
Material: 18 Gauge CRS
Mounting: By bracket in enclosure
OhmValue: 75
Operating Temperature (Celsius): -40°C to 60°C
Product Fits Into: On-Q Enclosure
Shape: Rectangular
Typical Insertion Loss: 11.1 dB
Typical Return Loss: 23.1 dB
Number Of Receptacles: 8
From the Manufacturer
High-performance splitter designed for digital cable, On Demand, Pay-per-View and high-speed cable Internet.
