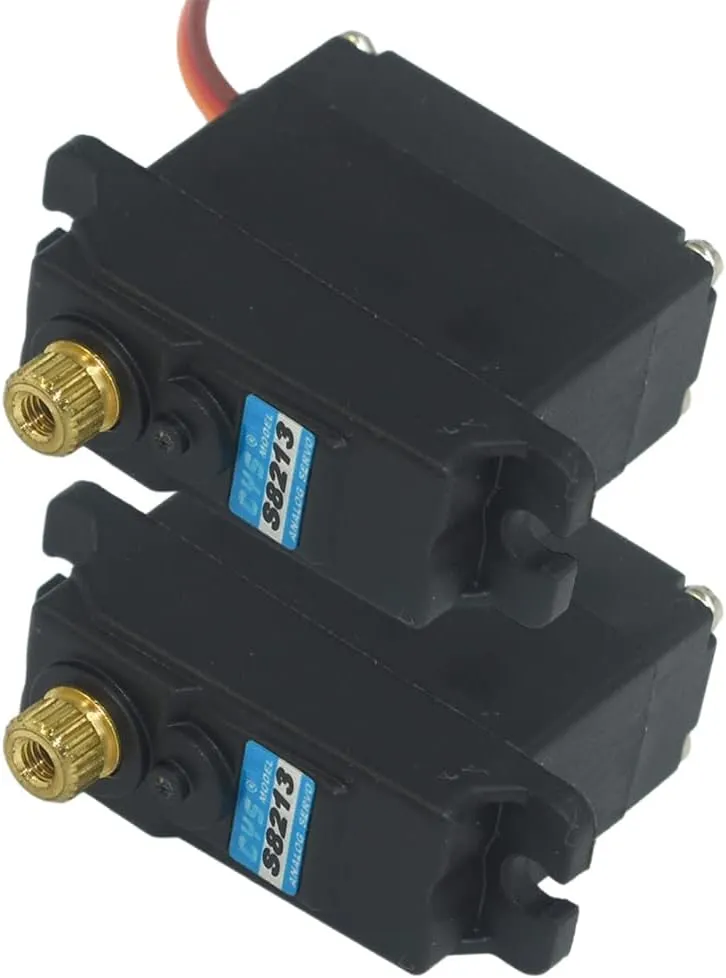

CYS S8213 Metal Gear 20g Analog Servo
Made By: CYS MODEL
Item No.: CYS-S8213
Model: S8213
Q'TY: 2pcs /Lot
20g Metal Gear Analog Servo
Size: 29*13.5*30.4mm /1.14*0.53*1.2in
Weight: 20g (0.71 oz)
Control System: ( )Pulse Width Control 1500usec Neutral
Operating Temperature Range: (-)10 to 50 Celcius degree
Operating Voltage: 4.8-6.0V
Speed at no load:
0.14sec/60 degree -(4.8V)
0.12sec/60 degree -(6.0V)
Stall Torque:
2.8kg.cm (38.89 oz/in) -(4.8V)
3.0kg.cm (41.67 oz/in) -(6.0V)
Operating Angle: 45deg.one side pulse traveling 500 usec
360 Modifiable: No
Direction: Anticlockwise /Pulse Traveling 1000~2000usec
Current Drain (4.8V): 20mA/idle and 120mA no load operating
Current Drain (6.0V): 20mA/idle and 150mA no load operating
Stall Current: 1A/1.3A
Dead Band Width: 4usec
Motor Type: Iron core
Bearing Type: ball bearing
Horn gear spline: 25T
Gear Type: Metal
JR Connector Wire Length: 180mm
Wire Info:
Brown/Black = Negative
Red = Positive
Orange/White = Signal
Suitable for Robot

Important Notes:
01. JR plug 18cm cable.
02. Refer to the figure when installing the servo accessories.
03. For engine powered airplanes and boats, rubber must be used to reduce vibration.
04. Please choose correct model for your application.
05. Torque over-loaded will damage the servo's mechanism.
06. Keep the servo clean and away from dust, corrosive gas and humid air.
