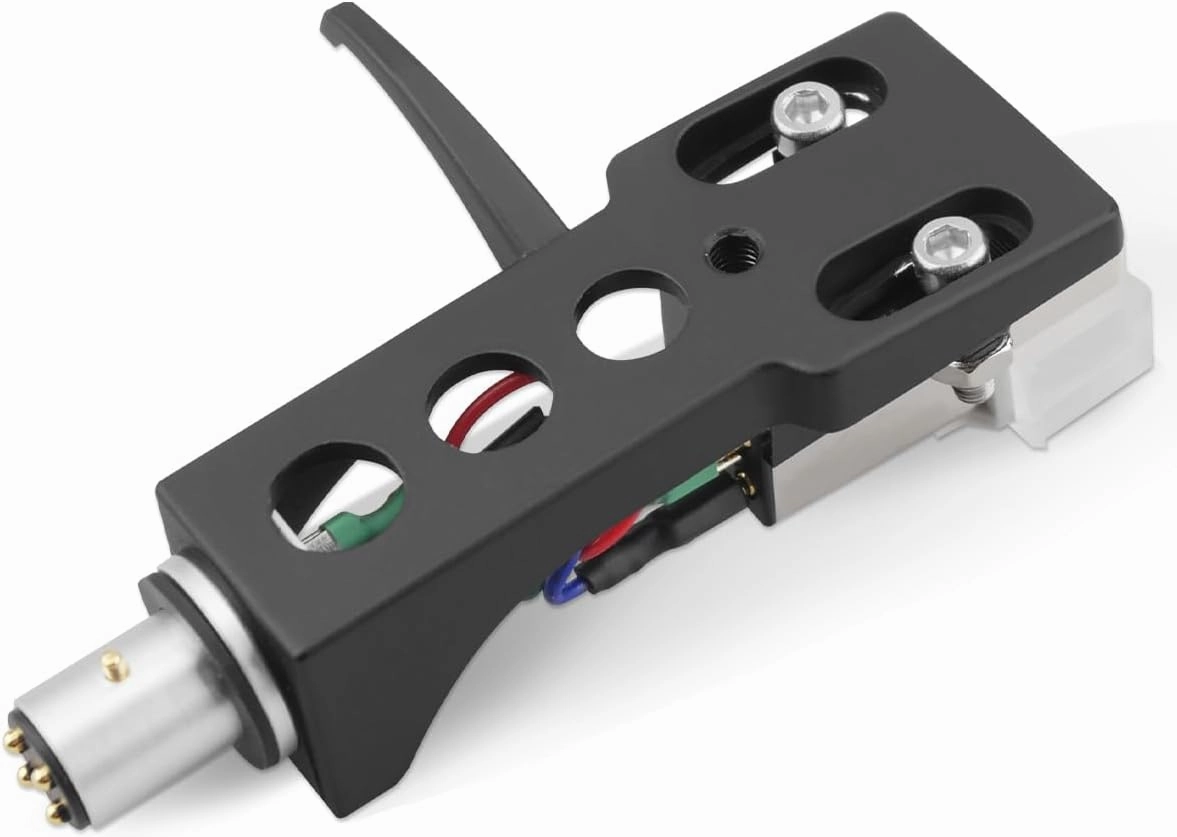

- Compatible Modles: This cartridge headshell is fit for Technics SL D1, SL D1K, SL D2, SL D202, SL D205, SL D2K, SL D3, SL D303, SL D33, SL D3K, SL D5
- Replacement Part Number: Replace AT-3600L
- High-quality Materials: This headshell is made of high-quality raw materials, which is wear-resistant, high-strength and long-lasting
- Product Packaging: Black headshell, AT-3600L cartridge and stylus
- Easy to Install: Just replace the old cartridge, simple and convenient
Technical Information:
Frequency Response: 20 - 20,000Hz
Channel Separation: 18 dB at 1kHz
Channel Balance: 1.5dB
Recommended Tracking Force: 2.5 - 3.5g
Vertical Tracking Angle: 24°
Recommended Load Impedance: 47kΩ
Output Voltage: 4.2 mV (1kHz / 5cm/sec)
Stylus Shape: Conical
Specification:
Fixing hole spacing: 13mm (measure the centre distance of two holes)
Cartridge terminal: R , R-, L , L-
4 Terminals colour: R =red, R-=green, L =white, L-=blue
Recommended acupressure range: 1.5g-2g
Features:
1. Premium performance, provides excellent clarity and detailed performance
2. High quality, each cartridge is carefully assembled and tested
3. Protective needle cover for when not in use
